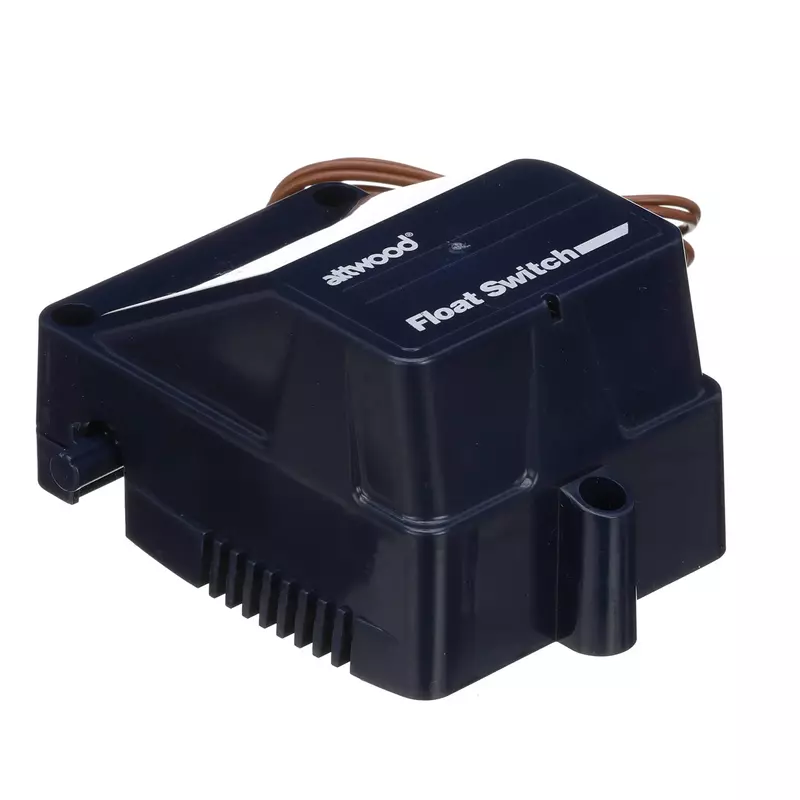

Attwood Automatic Float Switch w/Cover - 12V & 24V
Customize
This Attwood Float Switch With Cover can convert a manual bilge pump into one that is controlled fully automatically by this responsive and efficient switch. This switch features a compact design that mounts on any surface from horizontal up to a 24-degree angle. It incorporates a reliable mechanical switch that actuates the pump motor at 2 inches water level. Its cover offers additional protection, and a convenient test knob extends out from the cover so you can confirm the switch is operable. The wire leads do not flex or hinge with the float, as they do on some competitive models, and the integral cover dampens bilge sloshing to reduce pump cycling and prevent debris interference. The sealed switch mechanism resists moisture, fume-ignition, and electrical shock. It is 12- and 24-volt CE rated and has a 36-inch wire connection. The maximum amp draw is 12 amps (at 12-volt DC) or 6 amps (at 24-volt DC). This switch measures 5 ¼ inches L x 3 7/8 inches W x 2 7/8 inches H. It contains no mercury, which is listed as a health hazard and “Persistent Toxic Substance” in over 26 states. Marine ignition protected and RoHS compliant. Attwood Corporation has been an award-winning leader in engineering, testing, and manufacturing the highest quality marine products for over 100 years. We deliver safe and reliable lighting, fuel systems, water systems, seating & pedestals, swim ladders, custom upholstery, and general marine accessories that are easy to install and meet regulatory compliance.
- Converts manual bilge pump into one that is controlled fully automatically
- Compact design that mounts on any surface from horizontal up to a 24-degree angle
- Cover offers additional protection, and convenient test knob lets you can confirm switch is operable
- Sealed switch mechanism resists moisture, fume-ignition, and electrical shock
- Measures 5 ¼ inches L x 3 7/8 inches W x 2 7/8 inches H
- Maximum amp draw is 12 amps (at 12-volt DC) or 6 amps (at 24-volt DC)
- 12- and 24-volt CE rated with a 36-inch wire connection
Specifications:
| Materials & Construction | |
| Color | Unspecified |
| Material | Metal |
| Mounting Type (material related) | Surface Mount |
| Product Details | |
| Actuator Type | Mechanical |
| Circuit Type | 1-way |
| Connectivity Protocol | X-10 |
| Connector Type | Screw |
| Contact Material | Metal |
| Contact Type | Normally Open |
| Control Method | Touch |
| Current Rating | 6 Amps |
| Included Components | End Product & Information |
| International Protection Rating | IP00 |
| Mounting Type | Surface Mount |
| Number of Items | 1 |
| Number of Positions | 2 |
| Operating Voltage | 12 Volts |
| Operation Mode | automatic |
| Style | Bilge |
| Terminal | Screw |
| Unit Count | 1.0 Count |
| Wattage | 144 watts |
| Sizing & Dimensions | |
| Height | 7 inches |
| Length | 10.25 inches |
| Product Dimensions | 10.25 x 13.75 x 7 inches |
| Size | One Size |
| Weight | 0.04 ounces |
| Width | 13.75 inches |
| Technical Specifications | |
| Current Rating | 6 Amps |
| Operating Voltage | 12 Volts |
| Terminal | Screw |
