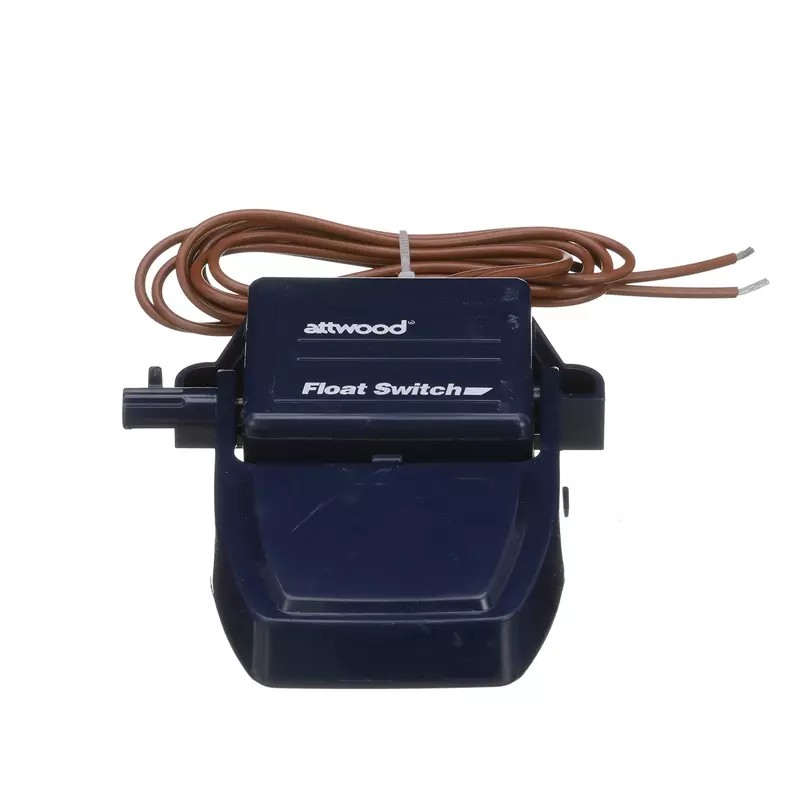

Attwood 4202-7 Float Switch, For Bilge Pump, 12- and 24-V CE rated, 36-Inch Wire

Float Switch Part #: 4202-7 Converts bilge pumps to fully automatic operation. Maximum amp draw is 12 amps (at 12-volt D.C.) or 6-amps (at 24-Volts D.C.). Features a compact, low profile design that mounts on any surface from a horizontal up to a 24x angle. Incorporates a reliable and affordable mechanical switch that actuates pump motor at 2" water level. Wire leads do not flex or hinge with the float as on some competitive models. Integral cover dampens bilge sloshing to reduce pump cycling, and prevents debris interference. Sealed switch mechanism resists moisture, fume-ignition, and electrical shock. Contains no mercury, which is listed as a health hazard and "Persistent Toxic Substance" in over 26 states. Float switch installs directly onto the rear slots of the V-Series pump bracket. Features a convenient test knob to test pump operation. Features: 36" Wire 12V & 24V CE Rated. This Attwood Float Switch can convert a manual bilge pump into one that is controlled fully automatically by this responsive and efficient switch. This switch features a compact, low-profile design that mounts on any surface from horizontal up to a 24-degree angle. It incorporates a reliable mechanical switch that actuates the pump motor at 2 inches water level. The wire leads do not flex or hinge with the float, as they do on some competitive models, and the integral cover dampens bilge sloshing to reduce pump cycling and prevent debris interference. The sealed switch mechanism resists moisture, fume-ignition, and electrical shock. It is 12- and 24-volt CE rated and has a 36-inch wire connection. The maximum amp draw is 12 amps (at 12-volt DC) or 6 amps (at 24-volt DC). This switch measures 4 ¼ inches L x 3 7/8 inches W x 1 3/8 inches H. It contains no mercury, which is listed as a health hazard and “Persistent Toxic Substance” in over 26 states. Marine ignition protected and RoHS compliant. Attwood Corporation has been an award-winning leader in engineering, testing, and manufacturing the highest quality marine products for over 100 years.

• Sealed switch mechanism resists moisture, fume-ignition, and electrical shock
• Measures 4 ¼ inches L x 3 7/8 inches W x 1 3/8 inches H
• Maximum amp draw is 12 amps (at 12-volt DC) or 6 amps (at 24-volt DC)
• 12- and 24-volt CE rated with a 36-inch wire connection
• Reliable mechanical switch that actuates pump motor at 2 inches water level
• Compact, low-profile design that mounts on any surface from horizontal up to a 24-degree angle
• Converts manual bilge pump into one that is controlled fully automatically
