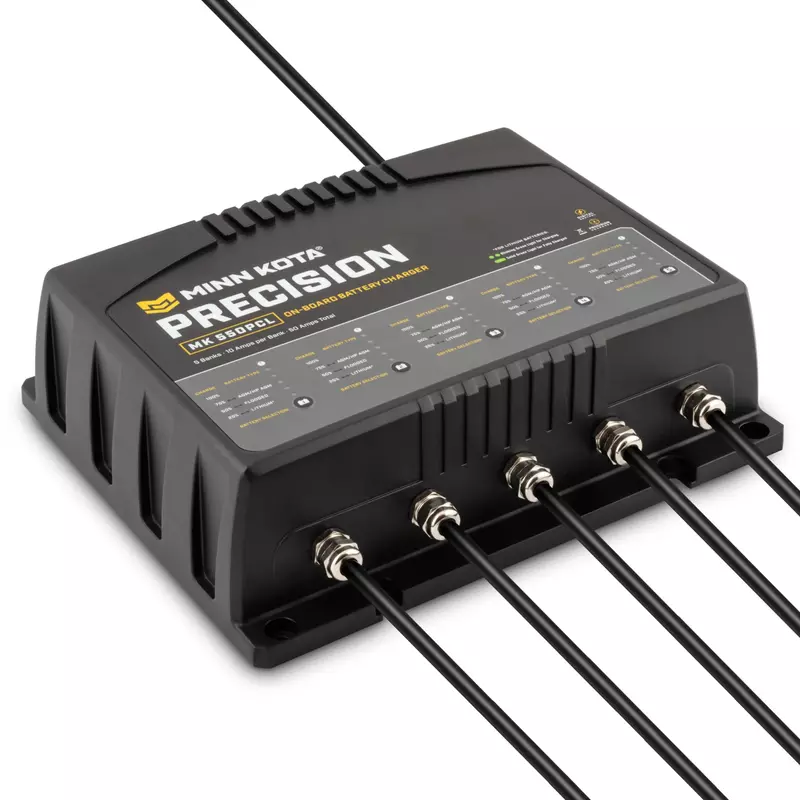

Minn Kota Precision MK-550PCL On-Board Battery Charger with 5 Charging Banks, 10 Amps per Bank
Customize
On-Board Precision Charger MK-550 PCL 5 Bank x 10 AMP LI Optimized Charger Longer run times. Shorter charge times. That's the precision difference that keeps anglers on the water longer and puts more fish in the boat. Now, the next generation of this legendary line of chargers has been optimized for 12-volt lithium (LiFePO4) batteries. Precision chargers feature battery-type selection by the bank, which now includes charge curves specially formulated for the high demands of lithium batteries, and can even wake these battery types from standby. Features include battery-type selection by bank (Lithium (LiFePO4), AGM or flooded), automatic temperature compensation, low-line voltage compensation, battery equalization (flooded lead-acid only), microprocessor digital control with LED indicators, automatic multi-stage charging, waterproof, shock- and vibration-resistant on-board construction, saltwater compatibility, and a full 3-year replacement warranty. Charger specifications include 5 charging banks, 10 amps output per bank, 120v charger input, multi-voltage output capability (12/24/36/48v) and precision charging for marine battery systems.
- Supported Battery Types: 12v AGM, 12v Flooded Lead Acid, 12v Lithium LiFePO4
- 3-Year Warranty: All battery chargers come with a full 3-year replacement warranty
- Waterproof Construction: All on-board chargers are built to be waterproof, shock-resistant and vibration-resistant
- Automatic Multi-Stage Charging: Controls the voltage and current your battery gets throughout the charging cycle, ensuring a fast, safe and precise charge
- LED Indicator Lights: Inform of charge stage, maintenance mode status, error notifications and full charge
- Digital Control: Microprocessor-based design delivers a faster, more precise charge every time. Precision chargers can even wake dead 12 volt lithium (LiFePO4) batteries from standby automatically.
- Battery Equalization: Cleans and protect your battery (flooded lead acid only) every time you plug in. Also activates a more rigorous, complete cleaning at the push of a button
- Low-Line Voltage Compensation: When outlets don't put out the 120 volts they are supposed to, Precision Chargers compensate to deliver a fast, consistent charge no matter what
- Automatic Temperature Compensation: Precision chargers sense and adjust to ambient temperature fluctuations to ensure a fast, accurate charge
- Battery Type Selection: Each charging bank can be selected to your specific battery type (Lithium (LiFePO4) AGM or flooded lead acid) to guarantee a safe, protected charge
Specifications:
| Materials & Construction | |
| Material | Mixed |
| Product Details | |
| Charging Banks | 5 |
| Included Components | Minn Kota 1835500 MK-550 PCL Precision On-Board Marine Charger, 5 Bank x 10 Amps |
| Portable | No |
| Style | Chargers |
| Sizing & Dimensions | |
| Height | 11.75 inches |
| Length | 3.5 inches |
| Product Dimensions | 3.5 x 9.88 x 11.75 inches |
| Size | One Size |
| Weight | 12 pounds |
| Width | 9.88 inches |
| Technical Specifications | |
| Charger Input - Voltage | 120v |
| Charger Output - Amps | 10a |
| Charger Output Voltage | 12/24/36/48v |
| Output Voltage | 12 Volts (DC) |
| Warranty | 3 year Manufacturer |
