Humminbird MEGA Live 2 Forward-Facing Sonar Transducer for XPLORE, APEX, and SOLIX G3 Fish Finders
Customize

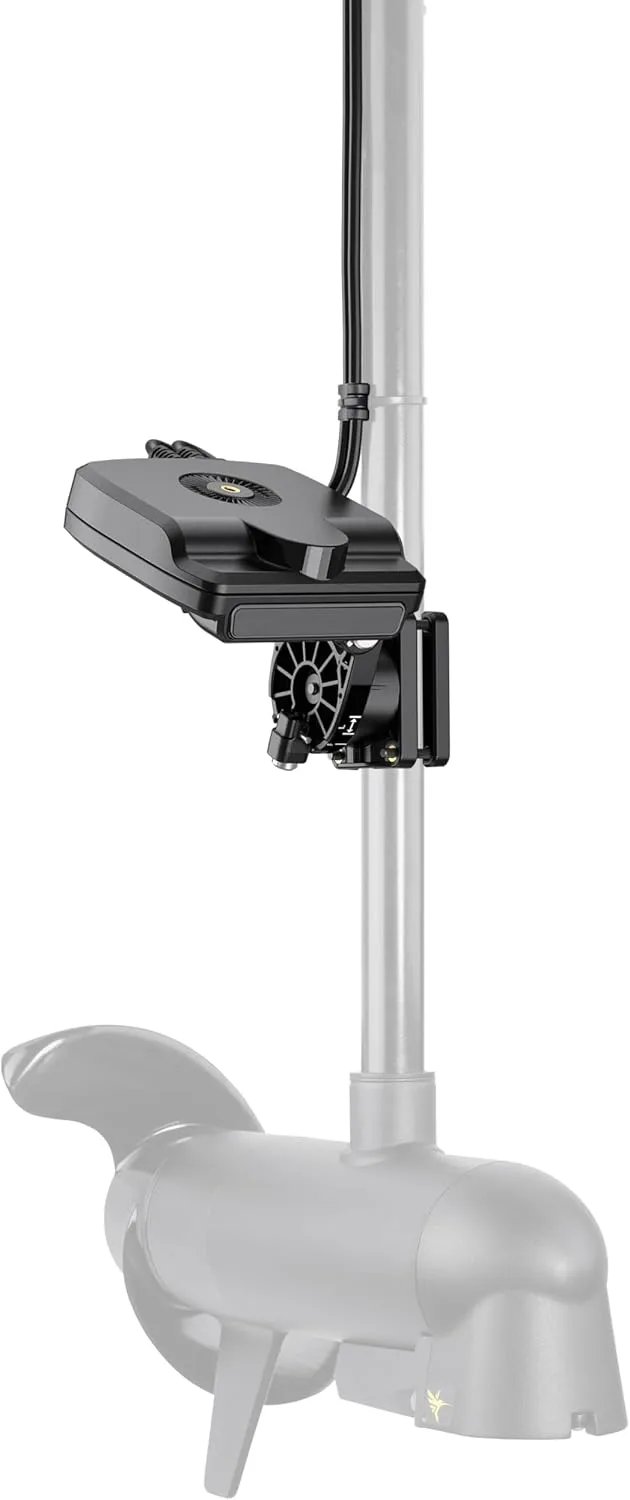

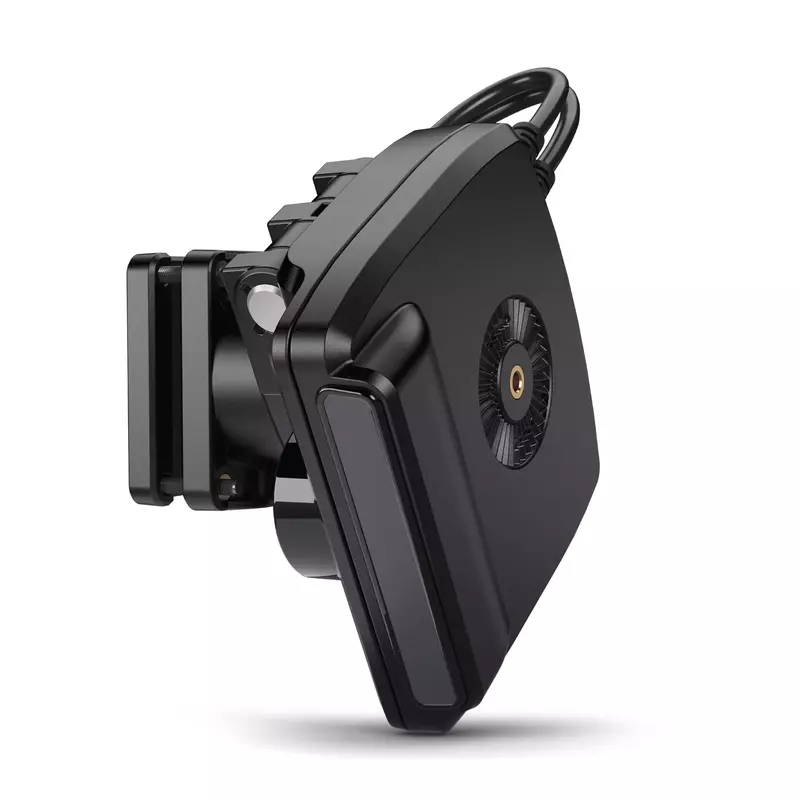

Mega Live 2 is a live sonar transducer that features enhanced and vivid clarity of fish and structures. It mounts to a trolling motor shaft and delivers three viewing modes: forward, down, and landscape. It is compatible with all Humminbird APEX, SOLIX G3, and XPLORE models and Minn Kota trolling motors. See fish and structure in real-time with no gaps in sonar coverage, powered by the unmatched detail and clarity of MEGA Imaging throughout the entire sonar view. Choose from multiple viewing modes and benefit from dynamic bait and lure tracking with MEGA Imaging detail and an optimized sonar cone angle for precise targeting of individual fish. Customizable color palettes enhance return clarity. Mounts on either side of the trolling motor shaft. Mark and view waypoints when paired with an optional GPS receiver with a heading sensor. Connect MEGA Live Imaging to compatible Humminbird models via the included Ethernet cable; no external sonar box required. Includes MEGA Live Imaging transducer with adjustable mounting bracket, 10' power cable, 20' Ethernet cable, mounting hardware, and a 2-Year Limited Warranty.
- Complete Installation Kit: Includes adjustable mounting bracket, 10-foot power cable, 20-foot Ethernet cable, mounting hardware; fits either side of trolling motor shaft
- Compatible Equipment: Works with XPLORE, APEX, and SOLIX G3 Humminbird models; connects directly to control head via included Ethernet cable without external sonar box
- Advanced Navigation Features: Supports waypoint marking for favorite fishing spots; customizable color palettes for enhanced sonar clarity; compatible with optional GPS heading sensor
- Premium Fish Detection: Optimized sonar cone angle provides precise individual fish targeting while maintaining broad coverage area; features dynamic bait and lure tracking
- MEGA Imaging Technology: Real-time sonar coverage with superior detail and clarity; includes Forward, Down, and Landscape viewing modes for complete underwater visibility
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Display Type | LCD |
| Included Components | MEGA Live Imaging transducer; 20' Ethernet cable; 10' Power cable; Trolling motor mounting bracket |
| Model Name | MEGA Live 2 Imaging Transducer |
| Number of Items | 1 |
| Size | One Size |
| Style | Imaging |
| UPC | 082324058929 |
| Warranty Description | Two-Year Warranty |
| Sizing & Dimensions | |
| Height | 4.2 inches |
| Item Package Dimensions L x W x H | 20 x 12.2 x 4.2 inches |
| Length | 20 inches |
| Weight | 7.803 pounds |
| Width | 12.2 inches |
| Technical Specifications | |
| Model Name | MEGA Live 2 Imaging Transducer |
| Warranty | Two-Year Warranty |
