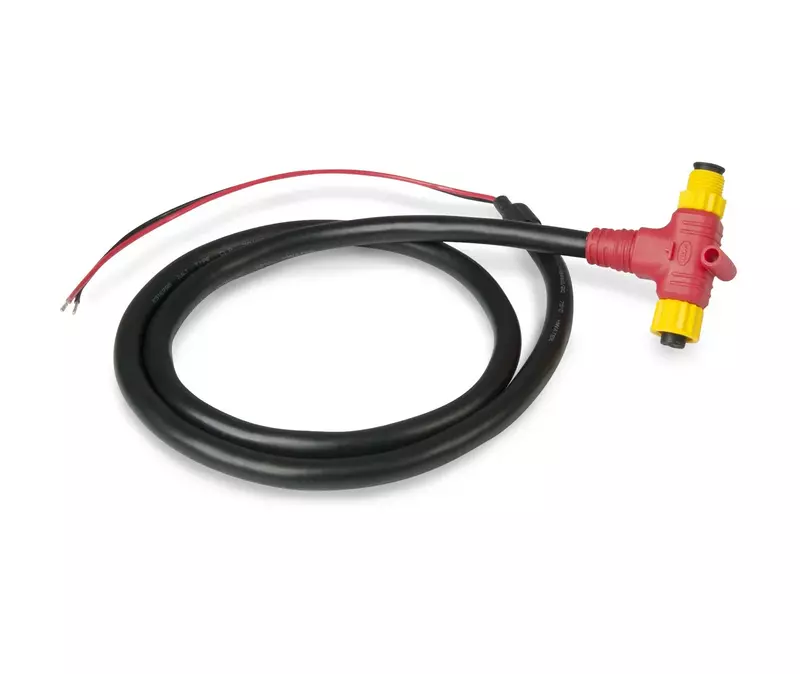

Ancor 1m 270000 Nmea 2000 Power Cable with Tee
ANCOR 1m NMEA 2000 power cable with tee (Model 270000) — color-coded tee and yellow couplers for easy installation, large 18 AWG conductors, NMEA 2000 certified for reliable marine power connections.
$44.99 $44.99
Customize
Available Quantity
32 Product Details
NMEA 2000 Power Cable With Tee - 1M. Ancor's NMEA 2000 Approved Power Cable with Tee allows for power connection to an NMEA 2000 network quickly and easily. The tee is color coded red to make identifying the power cable easy once installed as part of an NMEA 2000 network. The yellow couplers connect to the corresponding Ancor backbone cables and tees creating a simplified, color coded network installation. Features include color coded components for easy installation and identification, a 1 meter power cable with tee for direct connection to backbone cables, large 18 AWG power conductors to reduce voltage drop and meet ABYC/USCG conductor size requirements, and NMEA 2000 approval for compatibility with other manufacturers' products.
- Color coded for easy installation and component identification
- 1 meter power cable includes a tee for direct connection to backbone cables
- Large 18 AWG power conductors to reduce voltage drop, provide better reliability and meet the requirements of ABYC and the USCG for minimum size power conductors
- NMEA 2000 Certified, 100 percent universal and compatible with other manufacturers' products
Specifications:
| Materials & Construction | |
| Color | Power Tee |
| Material | Plastic |
| Product Details | |
| Color | Power Tee |
| Connector Gender | male-to-female |
| Included Components | Power cable with Tee |
| Material | Plastic |
| Model Name | NMEA 2000 Power Cable With Tee - 1 Meter |
| Number of Items | 1 |
| Size | 1m |
| Style | Tees |
| Sizing & Dimensions | |
| Height | 2.5 inches |
| Length | 6.5 inches |
| Product Dimensions | 6.5 x 3.63 x 2.5 inches |
| Size | 1m |
| Weight | 3.20 ounces |
| Width | 3.63 inches |
| Technical Specifications | |
| Input Current | 17.5 Amps |
| Voltage | 12 Volts (DC) |
| Warranty | Warranty |
