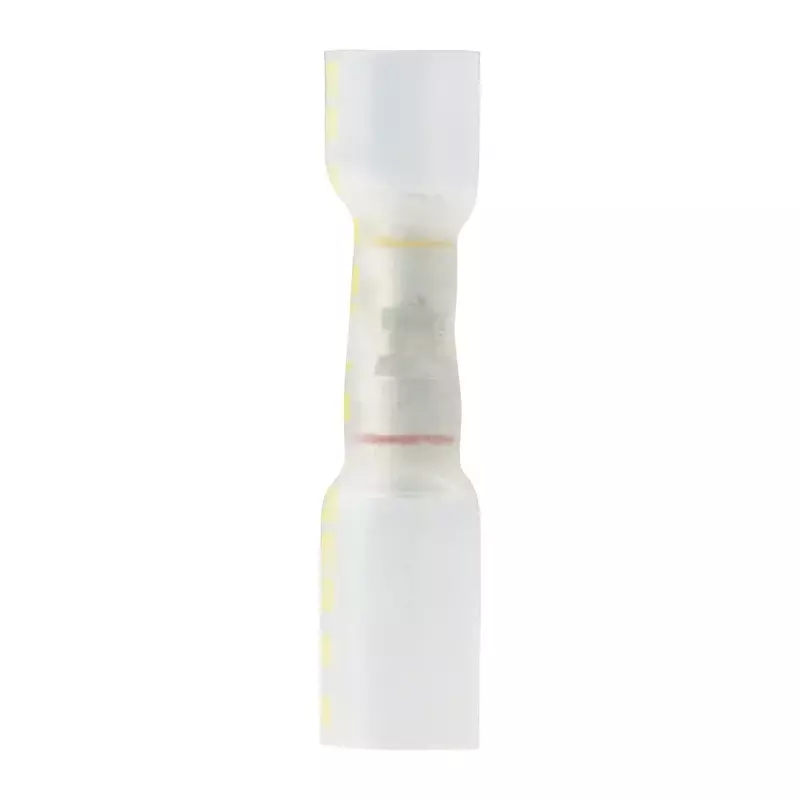

Ancor 320325 Heat Shrink Butt Connector, Step-Down, 12-10/12-8, 25pc,Beige
Customize
12-10 Gauge Heat Shrink Step-Down Multi-Wire Connectors - 25-Pack. Ancor's assortment of adhesive lined heat shrink butt connectors can be used as a step-down from one gauge size to another or as a multi-wire connector for one gauge size wire. These connectors offer a sealed alternative for products such as a quick-tap or 3-way connector in areas where corrosion is a concern. Features: 4:1 shrink ratio tubing to ensure a watertight seal between wires. Flared barrel with uniform copper wall ensures an easy and proper mechanical crimp. Crimp indicator on barrel for proper placement of installation tool. Clear heat shrink tubing ensures crimp accuracy. Colored stripes on the barrel indicate which crimp die to use, regardless of application. Ancor's new assortment of adhesive lined heat shrink butt connectors can be used as a step-down from one gauge size to another or as a multi-wire Connector for one gauge size wire. These connectors offer a sealed alternative for products such as a quick-tap or 3-way Connector in areas where corrosion is a concern. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Colored stripes on the barrel indicate which crimp die to Use, regardless of application
- Clear heat shrink tubing ensures crimp accuracy
- Crimp indicator on barrel for proper placement of installation tool
- Flared barrel with uniform Copper wall ensures an easy and proper mechanical crimp
- 4:1 shrink ratio tubing to ensure a watertight seal between wires
Specifications:
| Materials & Construction | |
| Color | Beige |
| Contact Material | Copper |
| Material | Plastic |
| Product Details | |
| Connector Type | Butt Splice |
| Contact Material | Copper |
| Gauge | 12-10 Awg |
| Heat Shrink | Yes |
| Included Components | Heat Shrink Butt Connectors (25) |
| Number of Items | 25 |
| Package Qty | 25 |
| Terminal | Butt Terminal |
| Type | Butt Connectors |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 5 x 1 inches |
| Size | Default Title |
| Weight | 0.08 pounds |
| Width | 5 inches |
| Technical Specifications | |
| Temperature Rating | 25 degree celsius |
