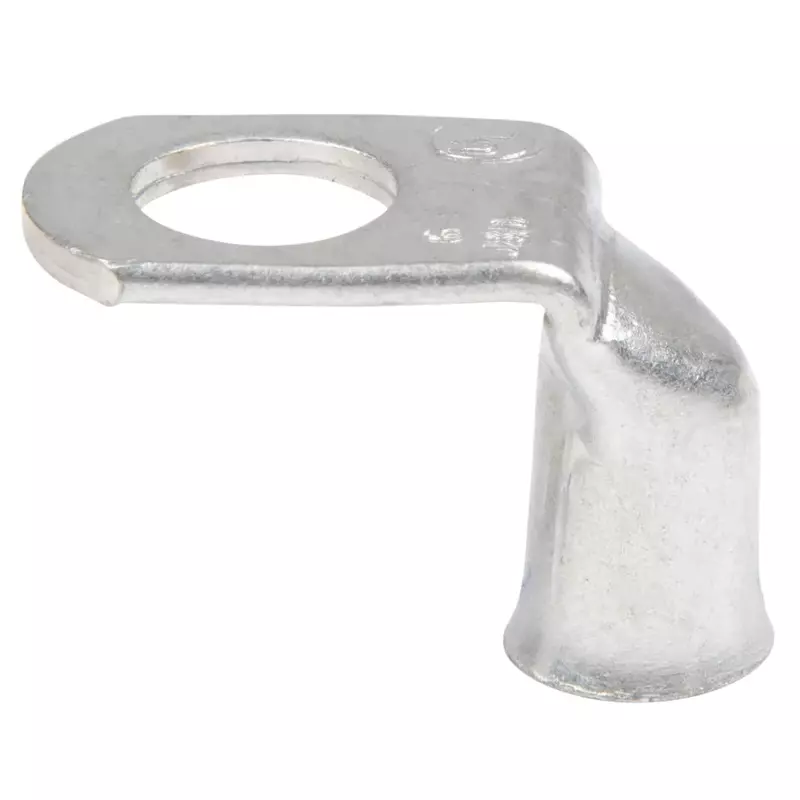

Ancor 262246 Tinned Lug 90degree #6 3/8", 2pc
ANCOR 90° tinned copper lug for marine and general electrical use — 6 AWG, 3/8" stud, non-insulated crimp connector, package of 2, corrosion-resistant and UL rated.
$7.99 $7.99
Customize
Available Quantity
16 Product Details
Ancor Marine Grade® lugs are manufactured from heavy-duty annealed tinned copper, providing for maximum current flow. 100% tin plated copper resists corrosion from salt and moisture. Seamless barrel design allows for maximum strength when crimped. Closed end design seals out moisture so cables stay dry and corrosion free. UL 486A. 90° bend for ease of wire routing. Heat Shrink: No. Type: Lugs. Post Size: 3/8". Package Qty: 2. Gauge: 6 AWG.
- 100% tin plated copper resists corrosion from salt and moisture
- Ancor Marine Grade lugs are manufactured from heavy-duty annealed tinned copper, providing for maximum current flow
- Screw size: 3/8", 9.5 mm
- 98 degree bend for ease of wire routing and seamless barrel design allows for maximum strength when crimped
- Tinned Lug 90degree 6 AWG 3/8", 2pc
Specifications:
| Materials & Construction | |
| Color | Silver |
| Material | Copper |
| Product Details | |
| Connector Type | Crimp |
| Contact Material | Copper |
| Gauge | 6 Awg |
| Heat Shrink | No |
| Included Components | 2 copper lugs |
| Insulation Material | Non-Insulated |
| Number of Items | 1 |
| Package Qty | 2 |
| Post Size | 3/8" |
| Size | 2 Pack |
| Specification Met | UL |
| Stud Size | 3/8 |
| Temperature Rating | 257 degree fahrenheit |
| Type | Lugs |
| Unit Count | 1.0 Count |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 3 x 1 inches |
| Size | 2 Pack |
| Weight | 0.01 ounces |
| Width | 3 inches |
| Technical Specifications | |
| Connector Type | Crimp |
| Contact Material | Copper |
| Insulation Material | Non-Insulated |
| Specification Met | UL |
| Stud Size | 3/8 |
| Temperature Rating | 257 degree fahrenheit |
