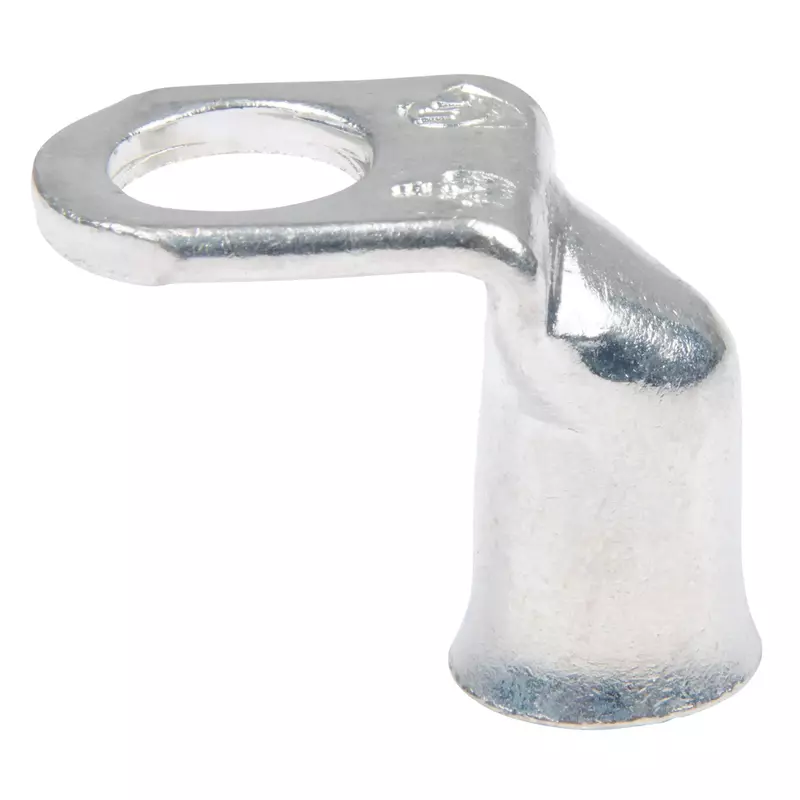

Ancor 262266 Tinned Copper Lug 90° #2 3/8" 2pc
ANCOR tinned 90° copper lug #2 (3/8") — marine-grade, tin-plated copper resists corrosion; seamless barrel for strong crimps; closed end seals out moisture; 2-piece pack; screw terminal; UL 486A.
$9.99 $9.99
Customize
Available Quantity
21 Product Details
Ancor 90° Tinned Copper Lug #2 - 3/8" - 2-Piece. 90° bend for ease of wire routing. Type: Lugs. Post Size: 3/8". Package Qty: 2. Heat Shrink: No. Gauge: 2 AWG. Ancor Marine Grade® lugs are manufactured from heavy-duty annealed tinned copper, providing for maximum current flow. 100% tin plated copper resists corrosion from salt and moisture. Seamless barrel design allows for maximum strength when crimped. Closed end design seals out moisture so cables stay dry and corrosion free. UL 486A. Screw size: 3/8" (9.5 mm). Includes 2 copper lugs. Temperature rating 257°F.
- 100% tin plated copper resists corrosion from salt and moisture
- Ancor Marine Grade lugs are manufactured from heavy-duty annealed tinned copper, providing for maximum current flow
- Screw size: 3/8", 9.5 mm
- 100 degree bend for ease of wire routing and seamless barrel design allows for maximum strength when crimped
- Tinned Lug 90degree 2 AWG 3/8", 2pc
Specifications:
| Materials & Construction | |
| Color | Silver |
| Included Components | 2 copper lugs |
| Insulation Material | Non-Insulated |
| Material | Tinned Copper |
| Product Details | |
| Connector Type | Screw |
| Contact Material | Copper |
| Gauge | 2.0 |
| Stud Size | 3/8 inch or 9.5 mm |
| Terminal | Screw Terminal |
| Type | Lugs |
| Sizing & Dimensions | |
| Height | 1 inches |
| Item Dimensions Lx Wx H | 3 x 2 x 1 inches |
| Item Package Dimensions L x W x H | 3.35 x 1.46 x 1.06 inches |
| Length | 3 inches |
| Product Dimensions | 3 x 2 x 1 inches |
| Size | 2 Pack |
| Weight | 0.71 ounces |
| Width | 2 inches |
| Technical Specifications | |
| Specification Met | UL |
| Temperature Rating | 257 degree fahrenheit |
| Unit Count | 1.0 Count |
