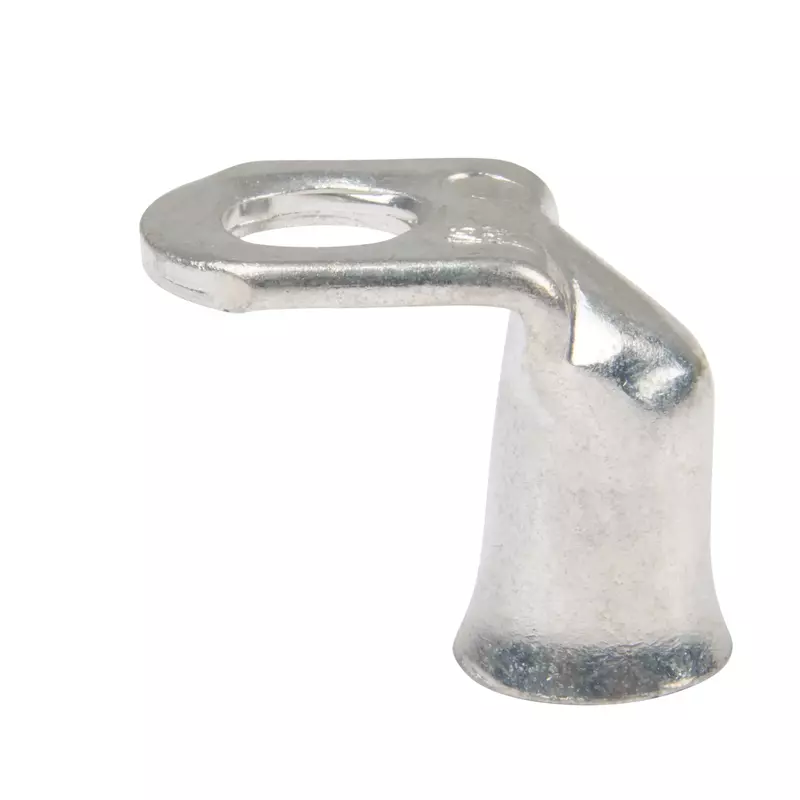

Ancor 262286 Tinned Lug 90degree #1/0 3/8", 2pc, Silver
Ancor 262286 90° tinned copper crimp lug for 1/0 AWG with 3/8" stud. Marine-grade, 100% tin plated copper resists corrosion; seamless barrel and closed end; 2-piece pack.
$11.99 $11.99
Customize
Available Quantity
22 Product Details
90° Tinned Copper Lug #1/0 - 3/8" - 2-Piece. 90° bend for ease of wire routing. Type: Lugs. Post Size: 3/8". Package Qty: 2. Heat Shrink: No. Gauge: 1/0 AWG. Ancor Marine Grade® lugs are manufactured from heavy-duty annealed tinned copper, providing for maximum current flow. 100% tin plated copper resists corrosion from salt and moisture. Seamless barrel design allows for maximum strength when crimped. Closed end design seals out moisture so cables stay dry and corrosion free. UL 486A.
- 100% tin plated copper resists corrosion from salt and moisture
- Ancor Marine Grade lugs are manufactured from heavy-duty annealed tinned copper, providing for maximum current flow
- Screw size: 3/8", 9.5 mm
- 102 degree bend for ease of wire routing and seamless barrel design allows for maximum strength when crimped
- Tinned Lug 90degree 1/0 AWG 3/8", 2pc
Specifications:
| Materials & Construction | |
| Color | Silver |
| Material | Copper |
| Outer Material | Copper |
| Product Details | |
| Connector Type | Crimp |
| Contact Material | Copper |
| Gauge | 1/0 AWG |
| Included Components | 2 copper lugs |
| Insulation Material | Non-Insulated |
| Number of Items | 1 |
| Part Number | 262286 |
| Size | 2 Pack |
| Specification Met | UL |
| Stud Size | 3/8 |
| Terminal | Screw Terminal |
| Type | Lugs |
| Unit Count | 1.0 Count |
| UPC | 091887991789 |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 3 inches |
| Product Dimensions | 3 x 1 x 1 inches |
| Size | 2 Pack |
| Weight | 1.41 ounces |
| Width | 1 inches |
| Technical Specifications | |
| Heat Shrink | No |
| Package Qty | 2 |
| Post Size | 3/8" |
| Specification Met | UL |
