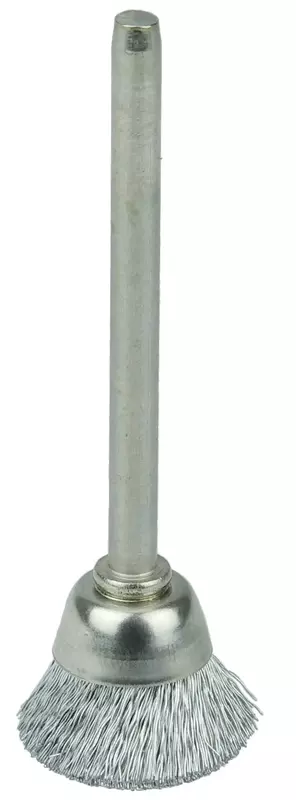

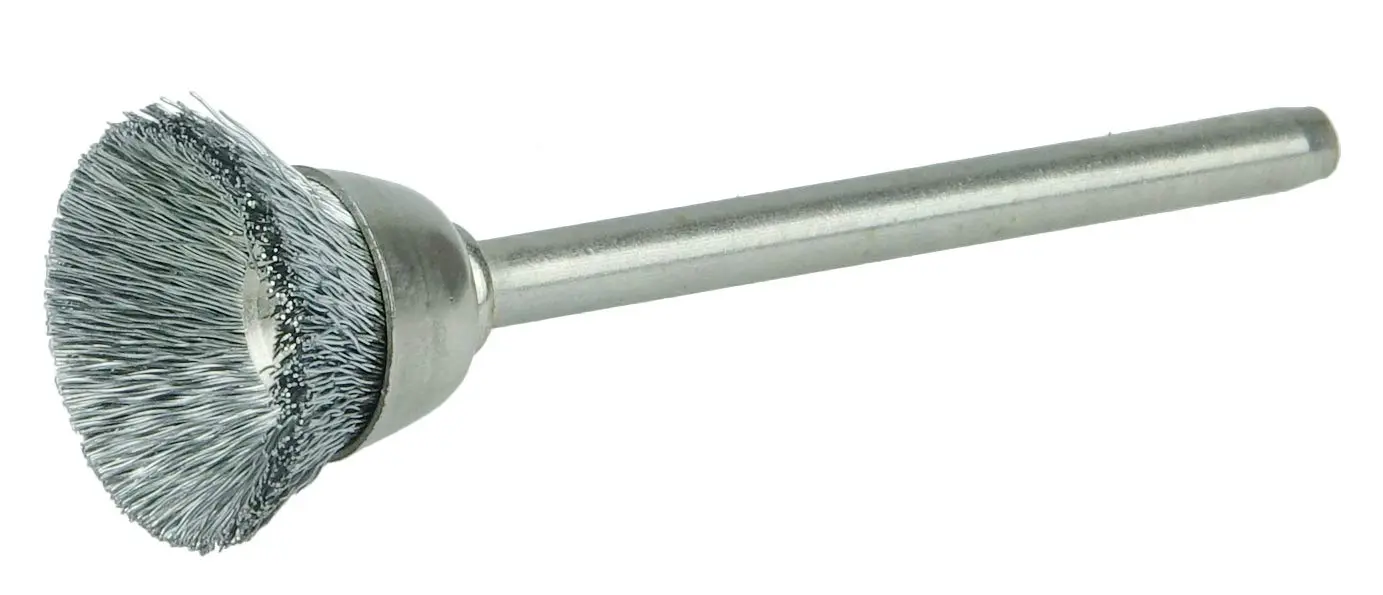

Weiler 26074 5/8" Miniature Cup Brush, .005" Steel Fill, 1/8" Stem, Made in the USA Pack of 1 .005 Wire Size
Customize
Weiler 5/8" Miniature Wire Cup Brush contains fine crimped wire fill for light-duty cleaning and deburring in confined areas. 1/8"a stem for use on flexible shaft tool and high speed pencil grinders. THE WEILER FAMILY began producing miniature brushes for the jewelry industry in 1898, and their tradition of providing the highest quality, most cost-effective products continues to this day. Weiler's line of miniature brushes are designed for precision cleaning, light deburring, and finishing applications in a variety of crafts, trades, and industries. In addition to use in jewelry production and in dental and optical labs, miniature brushes have many applications in modern industries such as electronics and instrumentation production, aerospace and aircraft manufacture, and precision tool and die shops. They are permanently mounted on 1/8" or 3/32" stems for quick mounting and efficient use on high-speed electric rotary tools and air-powered pencil die grinders. Product details (from ProductDatabase and specification tables): Brush Diameter (Decimal Inch): 5/8; Brush Type: Crimped; Fill Material: Steel (carbon steel fill); Abrasive Material: Carbon Steel; Arbor Type: Threaded Arbor; Shank Diameter (Inch): 1/8; Trim Length (Inch): 1/4; Shank Included: Yes; Row Count: Single Row; Maximum RPM: 37000. Use for light-duty cleaning, corrosion removal and deburring in confined areas. Constructed with internal steel ring to retain fill and minimize vibration.
- USE ON ROTARY TOOLS: Fits most flexible shaft rotary tools and high speed pencil grinders that accept a 1/8" stem
- IDEAL FOR LIGHT DUTY CLEANING ON SMALL SURFACES: Light duty cleaning, corrosion removal, and deburring in confined areas
- INDUSTRIAL GRADE CARBON STEEL WIRE FILL: Featuring heat treated, high tensile steel wire that has been drawn to the most exacting industry standards for superior fatigue resistance and brushing action
- ROBUST CONSTRUCTION: Constructed with an internal steel ring to retain the fill material and ensure equal spacing around the perimeter to minimize vibration and extend life
- MADE IN THE USA: Weiler Power Cup Bushes are proudly made in the USA at our factory in Cresco, PA
Specifications:
| Materials & Construction | |
| Color | .005 Wire Size |
| Material | Alloy Steel |
| Outer Material | Steel |
| Product Details | |
| Abrasive Material | Carbon Steel |
| Arbor Type | Threaded Arbor |
| Bridled | No |
| Bristle Type | Crimped Wire |
| Brush Diameter (Decimal Inch) | 5/8 |
| Brush Type | Crimped |
| Fill Material | Steel |
| Flared | No |
| Grit Material | Steel |
| Item model number | 26074 |
| Maximum Rpm | 37000.000 |
| Number of Pieces | 10 |
| Row Count | Single Row |
| Shank Diameter (Inch) | 1/8 |
| Shank Included | Yes |
| Trim Length (Inch) | 1/4 |
| Sizing & Dimensions | |
| Height | 0.6 inches |
| Length | 0.5 inches |
| Product Dimensions | 0.5 x 1.95 x 0.6 inches; 0.8 ounces |
| Size | 5/8 |
| Weight | 0.8 ounces |
| Width | 1.95 inches |
| Technical Specifications | |
| Item model number | 26074 |
| Maximum Rpm | 37000.000 |
| Number of Pieces | 10 |
