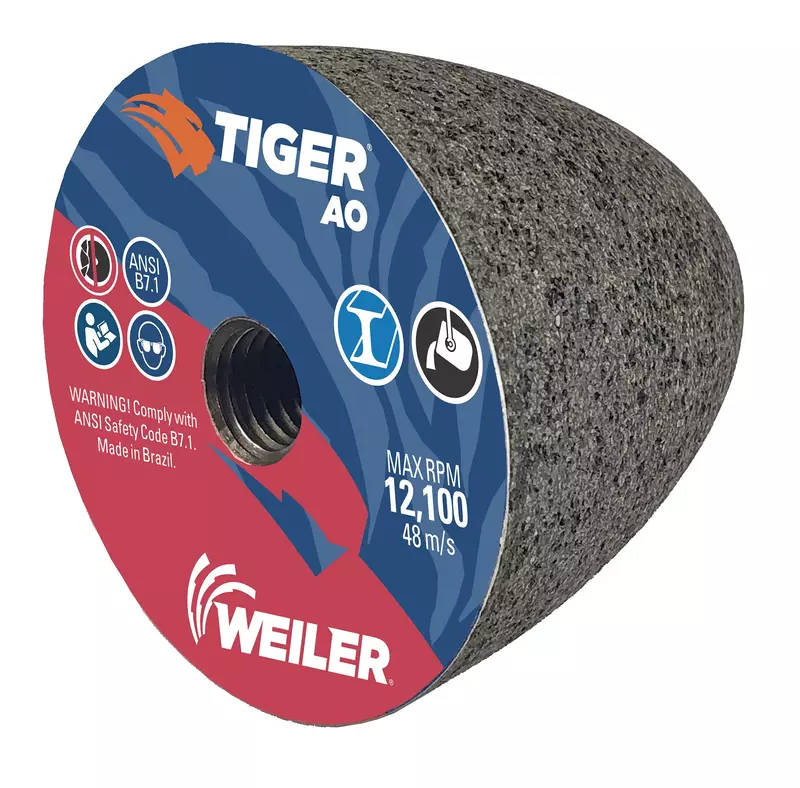

Weiler 68314 TIGER AO TYPE 16 Round Tip Portable Grinding Cone, A24-R, 3" X 3" X 5/8-11 (Pack of 12)
Customize
Weiler Tiger AO 3 x 3 inch type 16 cones deliver the right combination of performance and value. Aluminum oxide grains in combination with a strong bond deliver long product life and a consistent cut-rate when grinding metal. The type 16 shape features a tapered design with a rounded face that is ideal for ID cleaning, hole edge beveling, smoothing weld seams, removing gates and parting lines, and cleaning castings in hard-to-reach places. These plugs offer a 5/8-11 inch arbor and are designed for use on die grinders. Whether you are in a fab shop, foundry, or shipyard, you can count on Tiger AO cones and plugs to get the job done fast and done right. Product details: Shape: Curved; Round. Abrasive Material: Aluminum Oxide. Grade: Coarse. Grit: 24. Arbor Hole Thread Size: 5/8-11. Head Thickness: 3. Maximum RPM: 12100. Wheel Type Number Code: 16.
- Strong resin bond delivers a long cutting life.
- Aluminum oxide grains provide an even, sharp, clean cut-rate and consistent performance.
- Weiler Tiger AO 5 inch type 11 cup grinding wheels deliver the right combination of performance and value. Aluminum oxide grains in combination with a strong bond deliver long product life and a consistent cut-rate when grinding metal. The type 11 conic or flared shape features a flat face make them ideal for heavy metal removal, grinding, transitioning, rough beveling, and removing cracks and flaws. These cup rocks have a 1 inch rim and 3/4 inch back. The 5/8-11 inch arbor is designed for use on right angle die grinders, high-frequency grinders, and right angle grinders. Whether you are in a fab shop or a foundry, you can count on Tiger AO cup wheels to get the job done fast and done right.
Specifications:
| Materials & Construction | |
| Material | Aluminum Oxide |
| Outer Material | Aluminum Oxide |
| Product Details | |
| Abrasive Material | Aluminum Oxide |
| Arbor Hole Thread Size | 5/8-11 |
| Compatible Devices | Die Grinder |
| Grade | Coarse |
| Grit | 24 |
| Grit Material | Aluminum Oxide |
| Head Thickness | 3 |
| Shape | Curved; Round |
| Wheel Type Number Code | 16 |
| Sizing & Dimensions | |
| Height | 3.5 inches |
| Length | 3 inches |
| Product Dimensions | 3 x 3 x 3.5 inches |
| Size | 3 x 3 x 3.5 inches |
| Weight | 1 pounds |
| Width | 3 inches |
| Technical Specifications | |
| Maximum Rpm | 12100 |
