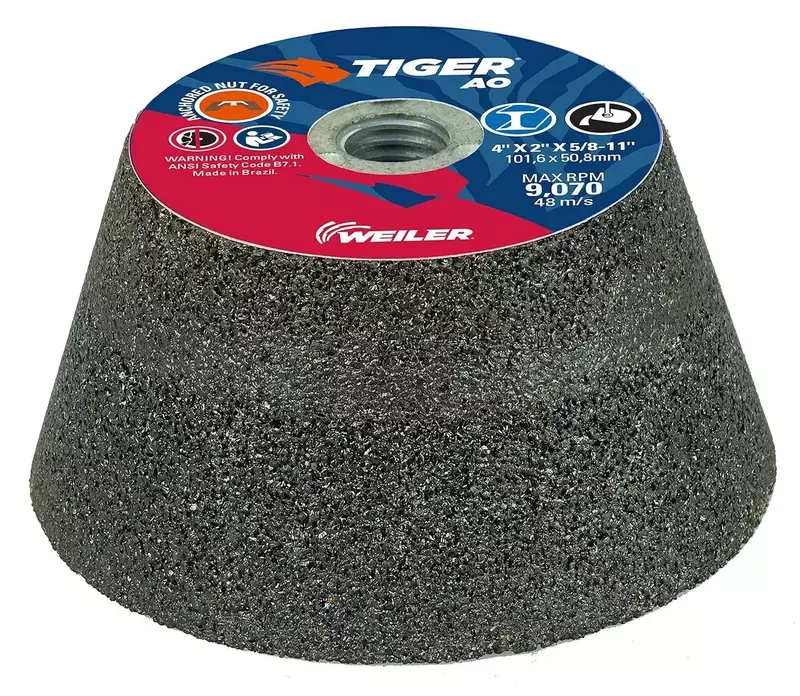

Weiler 68350 TIGER AO Type 11 Flaring Cup Wheel, A16-Q, 4/3 x 2 x 5/8-11, Rim 1", Back 3/4", (Pack of 5)
Customize
Tool & Cutting Grinding Wheel: 4" Dia, 3/4" Width, 5/8" Hole, 16 Grit, Q Hardness, Type 11, Abrasive Material: Aluminum Oxide , Wheel Type: Type 11 (Snagging) , Bond Type: Resinoid , Wheel Diameter (Inch): 4 , Overall Thickness (Fractional Inch): 2 , Grit: 16 , Specifications: A16Q , Wheel Color: Brown , Maximum Rpm: 9070 , Wheel Hardness Rating: Hard , Hardness Code: Q , For Use With: Steels , Face Width (Inch): 3/4 , Hole Thread Size: 5/8-11 , Hub Diameter (Inch): 3 , Trade Name: Tiger. Weiler Tiger AO 4 inch type 11 cup grinding wheels deliver the right combination of performance and value. Aluminum oxide grains in combination with a strong bond deliver long product life and a consistent cut-rate when grinding metal. The type 11 conic or flared shape features a flat face make them ideal for heavy metal removal, grinding, transitioning and rough beveling. These cup rocks have a 3/4 inch rim and 3/4 inch back. The 5/8-11 inch arbor is designed for use on right angle die grinders, high-frequency grinders, and right angle grinders. Whether you are in a fab shop or a foundry, you can count on Tiger AO cup wheels to get the job done fast and done right.
- Strong resin bond delivers a long cutting life.
- Aluminum oxide grains provide an even, sharp, clean cut-rate and consistent performance.
- Weiler Tiger AO 2 x 3 inch type 16 cones deliver the right combination of performance and value. Aluminum oxide grains in combination with a strong bond deliver long product life and a consistent cut-rate when grinding metal. The type 16 shape features a tapered design with a rounded face that is ideal for ID cleaning, hole edge beveling, smoothing weld seams, removing gates and parting lines, and cleaning castings in hard-to-reach places. These plugs offer a 3/8-24 inch arbor and are designed for use on die grinders. Whether you are in a fab shop, foundry, or shipyard, you can count on Tiger AO cones and plugs to get the job done fast and done right.
Specifications:
| Materials & Construction | |
| Color | Brown |
| Material | Aluminum Oxide |
| Outer Material | Aluminum Oxide |
| Product Details | |
| Abrasive Material | Aluminum Oxide |
| Bond Type | Resinoid |
| Face Width (Inch) | 3/4 |
| For Use With | Steels |
| Grit | 16 |
| Hardness Code | Q |
| Hole Thread Size | 5/8-11 |
| Hub Diameter (Inch) | 3 |
| Item model number | 68350 |
| Maximum Rpm | 9070 |
| Specifications | A16q |
| Trade Name | Tiger |
| Wheel Color | Brown |
| Wheel Hardness Rating | Hard |
| Wheel Type | Type 11 (Snagging) |
| Sizing & Dimensions | |
| Height | 2 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 4 x 2 inches |
| Size | 4 in Dia x 3/4 in Face x 2 in Thick |
| Weight | 7.85 pounds |
| Width | 4 inches |
| Technical Specifications | |
| For Use With | Steels |
| Hardness Code | Q |
| Maximum Rpm | 9070 |
| Wheel Hardness Rating | Hard |
