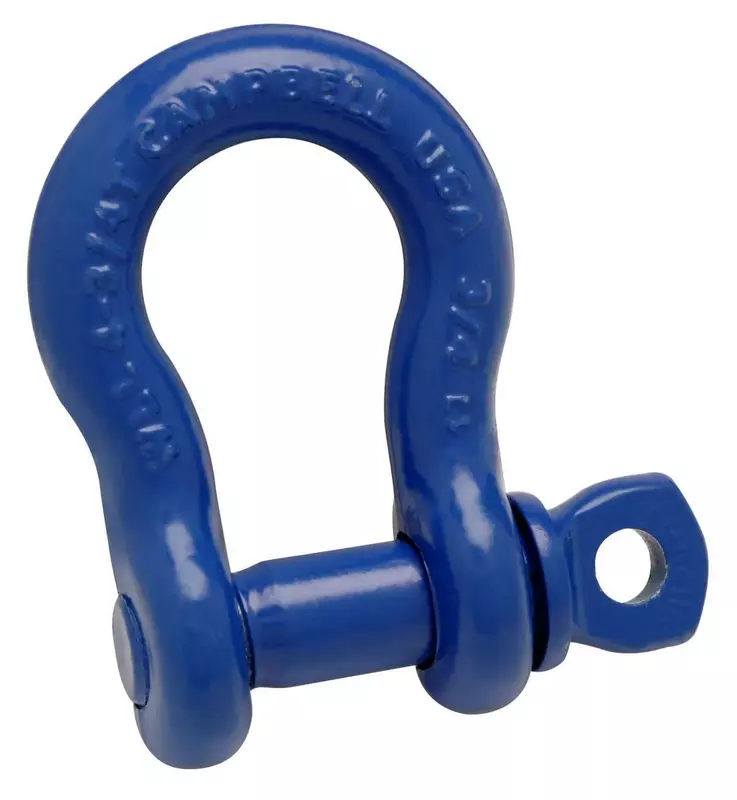

Campbell 419-S Screw Pin Anchor Shackles, Drop-Forged Carbon Steel, Painted Blue, 5/16" Trade, 3/4 ton Working Load Limit
Campbell 419-S screw-pin anchor shackle — drop-forged forged carbon steel, painted blue. 5/16" trade pin, 3/8" pin size, 3/4 ton working load limit. Grade A hardware for rigging, lifting and material handling.
$18.98 $18.98
Customize
Available Quantity
10 Product Details
Campbell 419-S screw-pin anchor shackle combines drop-forged, high-strength forged carbon steel construction with a painted finish for corrosion resistance. Shackle type: Anchor; pin type: Screw (threaded pin locking type). Thread size 3/8"-16 UNC with 3/8" pin size and a 17/32" opening. Typical dimensions and packaging are compact (package dimensions ~2 x 2 x 0.4 inches) and item weight is light (2.4 ounces). Designed to meet applicable ASTM and federal specification requirements for shackles; rated working load limit 3/4 ton. Suitable for rigging, lifting, pulling and general material handling applications.
- Comes in standard pack
- 3/4" Eye outer size
- 1-1/4" Length and 27/32" inner width
- Testing and approvals: Galvanized to astm a-153 specifications, 419-s, 419-g screw pin meets the design requirements of federal specification rr- c-271, type iva, grade a, class 2
- Working load limit must not be exceeded
Specifications:
| Materials & Construction | |
| Color | Blue |
| Material | Forged Carbon Steel |
| Outer Material | Forged Carbon Steel |
| Product Details | |
| Fastener Type | U-Bolt |
| Finish | Painted |
| Head Style | Round |
| Head Type | Pin |
| Item Hardness | Grade 2 |
| Manufacturer Grade | Grade A |
| Material | Carbon Steel |
| Pin Type | Screw |
| Shackle Type | Anchor |
| Thread Size | 3/8"-16 UNC |
| Sizing & Dimensions | |
| Height | 0.4 inches |
| Length | 2 inches |
| Product Dimensions | 2 x 2 x 0.4 inches |
| Product Weight | 0.175 |
| Size | 5/16" trade |
| Weight | 2.4 ounces |
| Width | 2 inches |
| Technical Specifications | |
| Manufacturer Grade | Grade A |
| Thread Size | 3/8"-16 UNC |
| Thread Style | Right Hand, Full, UNC, 1/4-20 |
| Thread Type | Unc |
| Working Load Limit | 3/4 ton |
