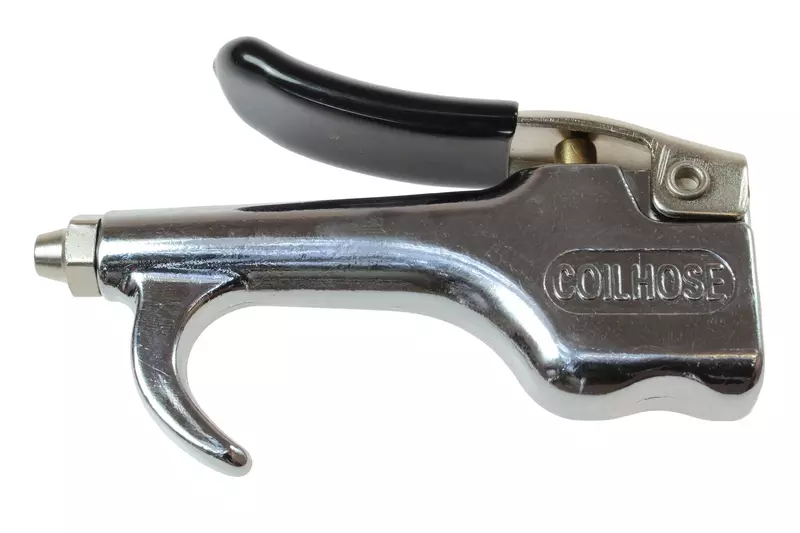

Coilhose Pneumatics 605 600 Series Blow Gun with Standard Brass Tip
Customize
Coilhose Pneumatics 600 Series Brass Tip Blow Gun (model 605) offers an economical, durable solution for blow-off tasks. The chrome-plated die-cast zinc body and brass tip deliver excellent corrosion resistance and durability; the ergonomic thumb lever reduces operator fatigue. Inlet: 1/4" NPT (female). Outlet: 1/8" female NPT typical outlet size; outlet tip: standard brass safety tip. Body material: die-cast zinc. Nozzle material: brass. Finish: chrome-plated. Features include ergonomic design, superior corrosion resistance, OSHA compliance, compact lever-operated design, and a maximum blowing capacity used in general commercial and industrial blow-off applications. Typical air flow information: ProductDatabase lists Standard Cubic Feet Per Minute: 10.00; Rainforest specification lists Air Flow Capacity: 28.32 LPM. Package dimensions: 4.3 x 2.8 x 0.8 inches; package weight: 1.6 ounces. Decibel rating: 84 to 87 dB. Ideal for industrial, maintenance, and manufacturing environments where a reliable blow gun is required.
- Compact lever-operated blow gun for use in general commercial and industrial blow-off applications
- 10 CFM maximum blowing volume
- Standard brass tip
- Chrome-plated die-cast zinc body resists corrosion
- 1/4" female NPT inlet thread and 1/8" female NPT outlet thread
Specifications:
| Materials & Construction | |
| Color | Black |
| Finish | Chrome-Plated |
| Material | Die Cast Zinc |
| Outer Material | Die Cast Zinc |
| Product Details | |
| Body Material | Die Cast Zinc |
| Body Style | Thumb Lever |
| Features | Ergonomic Design; Superior Corrosion Resistance |
| Inlet Size | 0.25in |
| Inlet Thread Size | 1/4 Npt |
| Item model number | 605-BAG |
| Nozzle Material | Brass |
| Outlet Size | 0.1300 |
| Thread Standard | Fnpt |
| Tip Type | Standard Safety - Brass |
| Sizing & Dimensions | |
| Height | 0.8 inches |
| Length | 2.45 inches |
| Product Dimensions | 2.4500 x 0.3850 x 0.8000 inches |
| Product Weight | 0.3850 |
| Weight | 1.6 ounces |
| Width | 0.385 inches |
| Technical Specifications | |
| Air Flow Capacity | 28.32 LPM |
| Decibel Rating | 84 To 87 |
| Standard Cubic Feet Per Minute | 10.00 |
| Style | WITH BRASS TIP |
