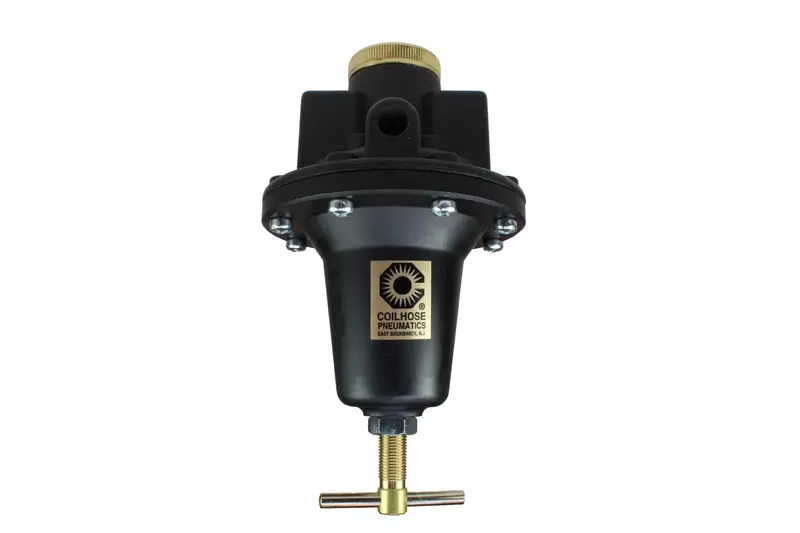

Coilhose Pneumatics 8802 Heavy Duty Series Regulator, 1/4-Inch Pipe Size
Customize
Compressed Air Regulator: 1/4" NPT, 250 Max psi, Heavy-Duty T-Handle 40 CFM, Regulator Type: Heavy-Duty T-Handle Regulator , Port Size: 1/4 , Range: 0 to 125 , End Connections: NPT , Maximum Air Flow: 40 CFM , Maximum Supply Pressure (psi): 250.00 , Maximum Working Pressure: 250.00 , Pressure Gauge Included: No , Gauge Port Thread Size: 1/4 , Modular Connection: No , Fluid Type: Compressed Air , Relief Function: Yes , Series: 88 , Air Flow (CFM): 40.00 , Material: Cast Aluminum. The Heavy Duty Regulator has a long established reputation for high quality and unsurpassed reliability. The balanced poppet valve design maintains precise downstream pressure and the diaphragm stop prevents ruptures in the event of surges. Supplied with 1/4" In and Out Ports.
- 1/4" female NPT connection
- Maximum pressure of 250 psi for safety
- Maximum temperature of 250 degrees F
- Die-cast aluminum construction for resistance to corrosion
- Regulates pressure on compressed air lines from 0 to 125 psi
Specifications:
| Materials & Construction | |
| Color | Black |
| Exterior Finish | Painted |
| Material | Die Cast Aluminum |
| Outer Material | Die Cast Aluminum |
| Product Details | |
| Air Flow (Cfm) | 40.00 |
| Connector Type | Coupling |
| End Connections | Npt |
| Exterior Finish | Painted |
| Fluid Type | Compressed Air |
| Gauge Port Thread Size | 1/4 |
| Global Trade Identification Number | 00029292151696 |
| Item model number | 8802 |
| Material | Die Cast Aluminum |
| Maximum Air Flow | 40 Cfm |
| Maximum Supply Pressure (Psi) | 250.00 |
| Maximum Working Pressure | 250.00 |
| Modular Connection | No |
| Number of Pieces | 1 |
| Port Size | 1/4 |
| Pressure Gauge Included | No |
| Range | 0 To 125 |
| Regulator Type | Heavy-Duty T-Handle Regulator |
| Relief Function | Yes |
| Series | 88 |
| Size | 1/4" PORTS |
| Thread Type | NPT |
| Sizing & Dimensions | |
| Height | 3.4 inches |
| Length | 3.4 inches |
| Product Dimensions | 3.4 x 1.05 x 3.4 inches |
| Size | 1/4" PORTS |
| Weight | 1.05 pounds |
| Width | 1.05 inches |
| Technical Specifications | |
| Air Flow (Cfm) | 40.00 |
| Fluid Type | Compressed Air |
| Gauge Port Thread Size | 1/4 |
| Maximum Air Flow | 40 Cfm |
| Maximum Supply Pressure (Psi) | 250.00 |
| Maximum Working Pressure | 250.00 |
| Pressure Gauge Included | No |
| Range | 0 To 125 |
| Series | 88 |
| Thread Type | NPT |
