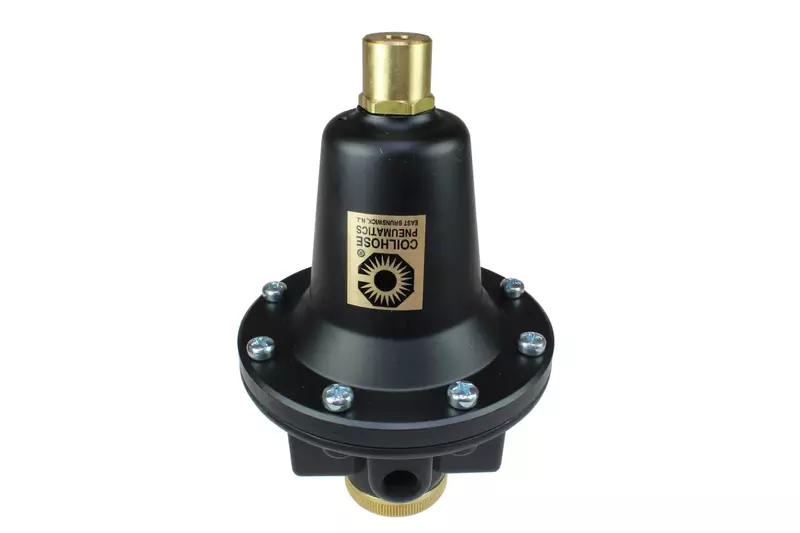

The Heavy Duty Regulator has a long established reputation for high quality and unsurpassed reliability. The balanced poppet valve design maintains precise downstream pressure and the diaphragm stop prevents ruptures in the event of surges. Supplied with 1/4" In and Out Ports. Features include 1/4" female NPT connection, die-cast aluminum construction for corrosion resistance, maximum pressure 250 psi and maximum temperature 250°F. Designed to regulate compressed air line pressure from 0 to 125 psi for industrial and shop applications.
| Materials & Construction | |
| Material | Die-cast aluminum |
| Outer Material | Die-cast aluminum |
| Product Details | |
| Item model number | 8802K |
| Sizing & Dimensions | |
| Height | 3 inches |
| Length | 3 inches |
| Product Dimensions | 3 x 6 x 3 inches |
| Weight | 1 pounds |
| Width | 6 inches |
| Technical Specifications | |
| Connection | 1/4-Inch female NPT |
| Is Discontinued By Manufacturer | No |
| Maximum Pressure | 250 psi |
| Maximum Temperature | 250 degrees F |
| Regulates Pressure Range | 0 to 125 psi |
