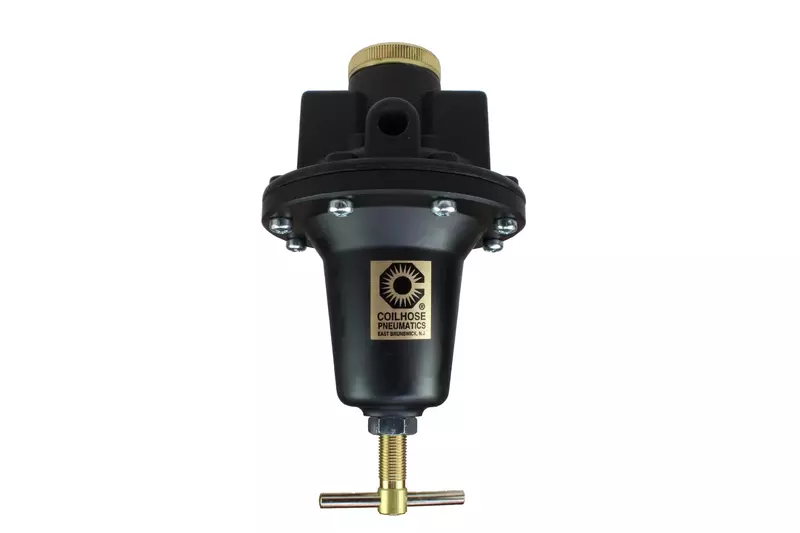

Coilhose Pneumatics 8804 Heavy Duty Series Regulator, 1/2-Inch Pipe Size
Coilhose Pneumatics 8804 heavy-duty compressed air regulator with 1/2" NPT ports, 0–125 psi adjustable range, 250 psi maximum, heavy-duty T-handle, cast aluminum body, 80 CFM.
$139.90 $139.90
Customize
Available Quantity
3 Product Details
The Heavy Duty Regulator has a long established reputation for high quality and unsurpassed reliability. The balanced poppet valve design maintains precise downstream pressure and the diaphragm stop prevents ruptures in the event of surges. Supplied with 1/2" In and Out Ports. Compressed Air Regulator: 1/2" NPT, 250 Max psi, Heavy-Duty T-Handle, 80 CFM. Regulator Type: Heavy-Duty T-Handle Regulator. Port Size: 1/2. Range: 0 to 125. End Connections: NPT. Maximum Air Flow: 80 CFM. Maximum Supply Pressure (psi): 250.00. Maximum Working Pressure: 250.00. Pressure Gauge Included: No. Gauge Port Thread Size: 1/4. Modular Connection: No. Fluid Type: Compressed Air. Relief Function: Yes. Series: 88. Material: Cast Aluminum.
- 1/2" female NPT connection
- Maximum pressure of 250 psi for safety
- Maximum temperature of 250 degrees F
- Die-cast aluminum construction for resistance to corrosion
- Regulates pressure on compressed air lines from 0 to 125 psi
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Cast Aluminum |
| Outer Material | Cast Aluminum |
| Product Details | |
| Air Flow (Cfm) | 80.00 |
| Connector Type | NPT |
| End Connections | Npt |
| Exterior Finish | Painted |
| Fluid Type | Compressed Air |
| Gauge Port Thread Size | 1/4 |
| Item model number | 8804 |
| Material | Cast Aluminum |
| Maximum Air Flow | 80 Cfm |
| Maximum Supply Pressure (Psi) | 250.00 |
| Maximum Working Pressure | 250.00 |
| Modular Connection | No |
| National Stock Number | 4820-01-533-6862 |
| Number of Pieces | 1 |
| Port Size | 1/2 |
| Pressure Gauge Included | No |
| Range | 0 To 125 |
| Regulator Type | Heavy-Duty T-Handle Regulator |
| Relief Function | Yes |
| Series | 88 |
| Thread Type | NPT |
| Sizing & Dimensions | |
| Height | 48 inches |
| Length | 48 inches |
| Product Dimensions | 48 x 60 x 48 inches |
| Size | 1/2" PORTS |
| Weight | 16 ounces |
| Width | 60 inches |
| Technical Specifications | |
| Air Flow (Cfm) | 80.00 |
| Maximum Supply Pressure (Psi) | 250.00 |
| Maximum Working Pressure | 250.00 |
