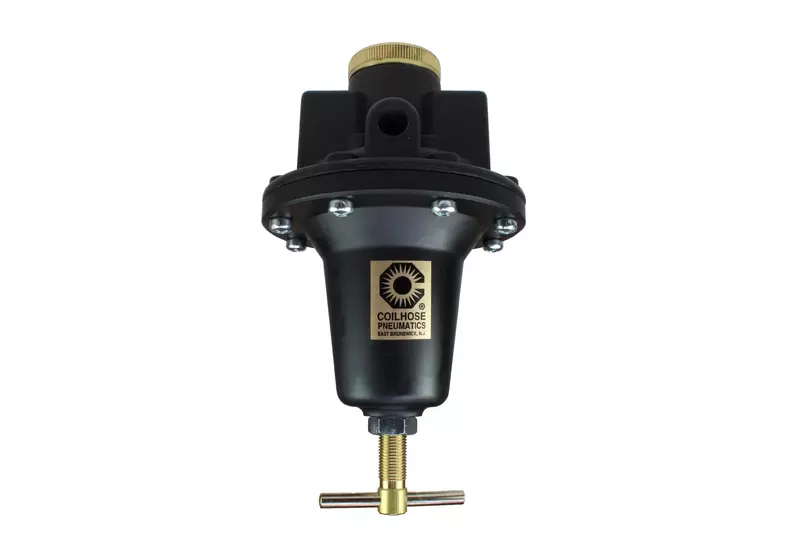

Coilhose Pneumatics 8806 Heavy Duty Series Regulator, 3/4-Inch Pipe Size
Customize
The Heavy Duty Regulator has a long established reputation for high quality and unsurpassed reliability. The balanced poppet valve design maintains precise downstream pressure and the diaphragm stop prevents ruptures in the event of surges. Supplied with 3/4" In and Out Ports. Product Name/Code: 15365 3/4" REGULATOR (InternalId: 02107750). Manufacturer Part Number: 8806. Construction: die-cast aluminum with painted exterior finish and coupling connector. Dimensions (manufacturer/marketing): 5 x 5 x 8.5 inches; Item Weight: 4 Pounds. ProductDatabase recorded item dimensions (ItemProductHeight x ItemProductWidth x ItemProductLength): 6.6000 x 3.4500 x 9.3000 and ProductWeight: 3.4500 (values from internal ProductDatabase). Suitable for industrial compressed-air systems, provides regulated downstream pressure up to 125 psi while withstanding a maximum pressure of 250 psi. Thread Type: NPT. Connector Type: Coupling. Size/Ports: 3/4" ports. Global Trade Identification Number: 00029292153652. Categories: Industrial & Scientific > Filtration > Compressed Air Treatment > Filters, Regulators & Lubricators > Regulators. UPC: 029292153652.
- Regulates pressure on compressed air lines from 0 to 125 psi
- Die-cast aluminum construction for resistance to corrosion
- Maximum temperature of 250 degrees F
- Maximum pressure of 250 psi for safety
- 3/4" female NPT connection
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Die Cast Aluminum |
| Outer Material | Die Cast Aluminum |
| Product Details | |
| Connector Type | Coupling |
| Exterior Finish | Painted |
| Global Trade Identification Number | 00029292153652 |
| Thread Type | NPT |
| Sizing & Dimensions | |
| Height | 8.5 inches |
| Length | 5 inches |
| Product Dimensions | 5 x 5 x 8.5 inches |
| Size | 3/4" PORTS |
| Weight | 4 pounds |
| Width | 5 inches |
