Coilhose Pneumatics 8808 Heavy Duty Series Regulator, 1-Inch Pipe Size
Customize

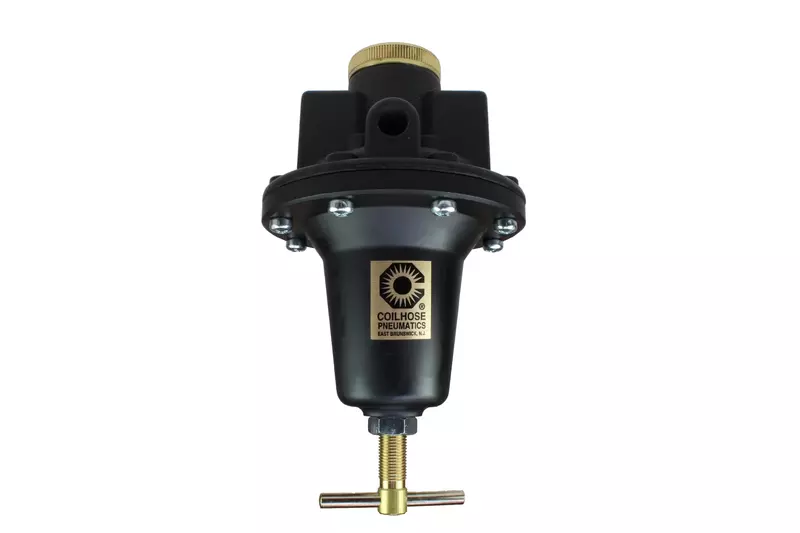

The Coilhose Pneumatics 8808 Heavy Duty Series Regulator is a rugged, die-cast aluminum pressure regulator designed for compressed air systems. It features a balanced poppet valve design to maintain precise downstream pressure and a diaphragm stop to prevent ruptures during pressure surges. Supplied with 1" female NPT in/out ports and a painted exterior finish for corrosion resistance. Suitable for regulating pressures from 0 to 125 psi with a maximum safety pressure of 250 psi and maximum temperature up to 250°F. Item dimensions are listed as 1 x 1 x 1 inches with an item weight around 3.35 pounds (manufacturer model 8808). Ideal for industrial filtration and compressed air treatment applications where dependable pressure regulation is required.
- Regulates pressure on compressed air lines from 0 to 125 psi
- Die-cast aluminum construction for resistance to corrosion
- Maximum temperature of 250 degrees F
- Maximum pressure of 250 psi for safety
- 1" female NPT connection
Specifications:
| Materials & Construction | |
| Color | Black |
| Material | Die Cast Aluminum |
| Product Details | |
| Exterior Finish | Painted |
| Global Trade Identification Number | 00029292154284 |
| Item dimensions L x W x H | 1 x 1 x 1 inches |
| Item model number | 8808 |
| Size | 1" PORTS |
| Thread Size | 1 inch |
| Thread Type | NPT |
| Sizing & Dimensions | |
| Height | 1 inches |
| Length | 1 inches |
| Product Dimensions | 1 x 1 x 1 inches |
| Size | 1" PORTS |
| Weight | 3.35 pounds |
| Width | 1 inches |
| Technical Specifications | |
| Item dimensions L x W x H | 1 x 1 x 1 inches |
