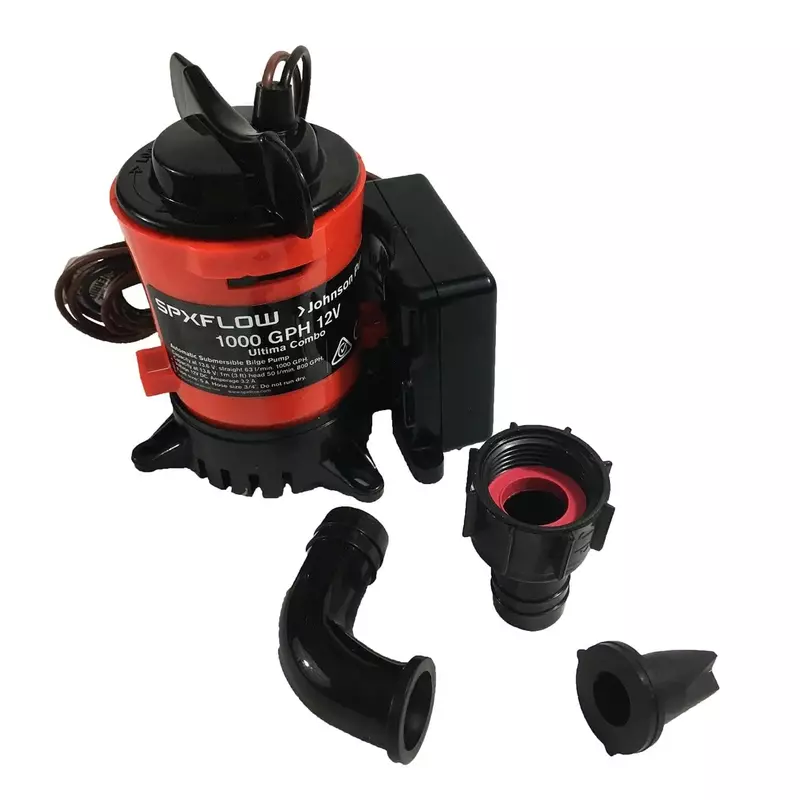

Johnson Pump Ultima Combo Bilge Pump 1000 GPH 3/4" Dura-Port
Customize
1000 GPH Ultima Combo Automatic Submersible Bilge Pump 12V. Johnson Pump Marine Ultima Combo bilge pumps are JPM's proven Cartridge Bilge Pumps combined with the non-clogging electronic Ultima Switch for automatic operation. The electronic Ultima Switch uses patented Mirus field effect detector cells producing micro-electrical fields that detect water level and automatically activate/deactivate the pump. CE-Approved. Features: pre-configured with an electronic Ultima Switch for automatic operation; capacities 500 GPH, 750 GPH, 1000 GPH and 1250 GPH; extremely energy efficient; water-cooled motor for long service intervals; compact all-in-one motor/impeller unit with stainless steel (SS2343) shaft; no tools needed for maintenance — pump casing can remain attached to boat and hoses; 500/750/1000 GPH pumps include Dura-Port discharge ports to eliminate stress cracking from over-tightened hose clamps; delivered including both straight and 90° smooth elbow Dura-Port and removable check valve. Pump body: thermoplastic. Shaft seal: lip seal. Shaft: stainless steel. Voltage: 12V. Wire size: 16GA. Hose size: 3/4". Includes Dura-Port connection. (Also marketed as Johnson Pumps Ultima Combo Bilge Pump 1000 GPH.)
- Cartridge Allows Easy Replacement Of Motor Element
- Package Weight :12.0Lbs
- Country Of Origin :United States
- Package Dimensions :10.0 " L X11.0 " W X12.0 " H
- Product Type :Electronic Switch
Specifications:
| Materials & Construction | |
| Material | Plastic |
| Outer Material | Plastic |
| Product Details | |
| Gallons Per Hour | 1000 Gph |
| Included Components | Johnson Pumps Ultima Combo Bilge Pump 1000 GPH |
| Maximum Flow Rate | 1000 Gallons Per Minute |
| Maximum Lifting Height | 3 Feet |
| Operation | Automatic |
| Part Number | 07903-00 |
| Power Source | Ac/dc |
| Style | Bilge Pump |
| Type | Electric |
| Sizing & Dimensions | |
| Height | 4 inches |
| Length | 8 inches |
| Product Dimensions | 8 x 7 x 4 inches |
| Size | One Size |
| Weight | 1.102 pounds |
| Width | 7 inches |
| Technical Specifications | |
| Amperage | 3.2 A |
| Connection | 3/4" |
| Fuse size | 5 A |
| Voltage | 12 Volts |
| Warranty | Warranty |
