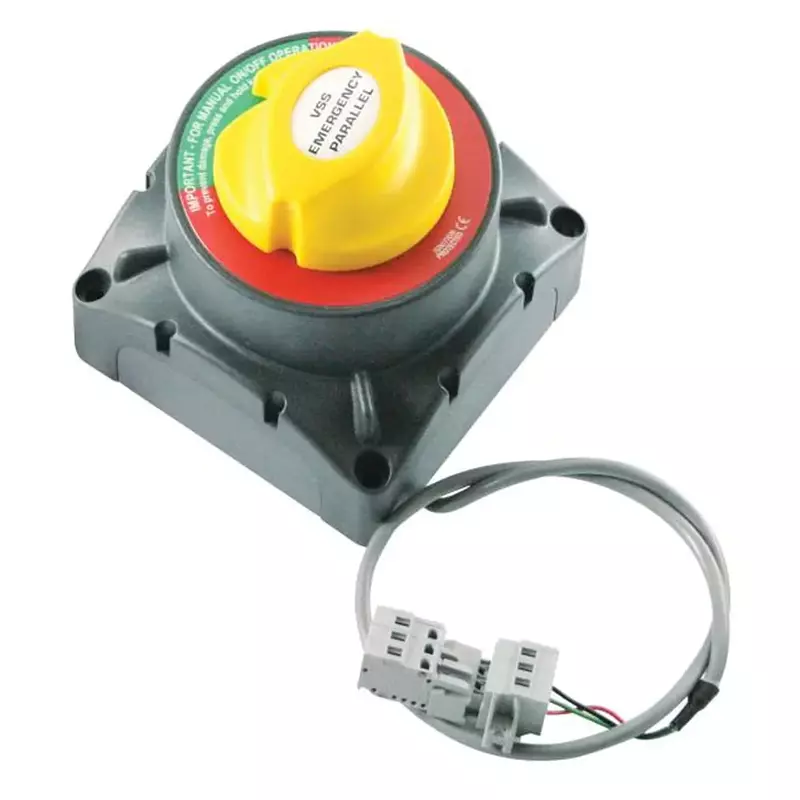

BEP 720-MDVSO Dual Operation VSS (Voltage Sensitive Switch) HD Optic, 12/24V, 500A MC6
Customize
Dual Operation VSS Switch HD Optic - 12/24V - 500A. These voltage sensitive switches (VSS) automatically sense connected battery bank voltages and provide optimal, efficient charging of the second bank. The VSS allows independent battery banks to be combined or isolated based on the presence of a charging source (such as an engine alternator or battery charger), while also offering remotely activated, high current, emergency parallel connection. Designed and constructed for longevity in the marine environment with tinned copper conductors, stainless steel nuts, and high temperature, fibre reinforced plastics. The units are ignition protected, provide On/Off switching operation, and may be recessed or surface mounted. The remote emergency parallel function can be operated through a momentary button on the dash which will parallel the batteries for 10 minutes. Once this 10 minutes has passed, if the voltage is high enough, the voltage sensitive switch will stay engaged. If not, it will disengage. Features include dual battery sensing, manual override option, dual 12/24 volt operation (both banks must be same voltage), low power consumption and lowered cut-in voltage to suit low output alternators and high temperature environments. Technical specifications include rating of 500A and suitable mounting options. In the box: Parallel Switch and Instruction manual. *Sold as an Individual. WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
- Part number: 720MDVS
- Dual 12/24 volt operation (both banks must be same voltage)
- Manual override option
- Lowered cut in voltage suits low output alternators and high temperature
Specifications:
| Materials & Construction | |
| Color | No Color |
| Terminal | Marine |
| Product Details | |
| Connector Type | Mc6 |
| Contact Type | Normally Open |
| Continuous Amperage | 500 |
| Control Method | Remote |
| International Protection Rating | IP54 |
| Lockable | No |
| Operation Mode | Automatically,Off |
| Positions | 2 |
| Terminal | Marine |
| Sizing & Dimensions | |
| Size | One Size |
| Weight | 1.5 pounds |
| Technical Specifications | |
| Connectivity Protocol | X-10 |
| Current Rating | 500 Amps |
| Included Components | BEP 720-MDVSO Dual Operation VSS (Voltage Sensitive Switch) HD Optic, 12/24V, 500A MC6 |
| Number of Items | 1 |
| Operating Voltage | 24 Volts |
| Unit Count | 1.0 Count |
| Warranty Description | Warranty |
