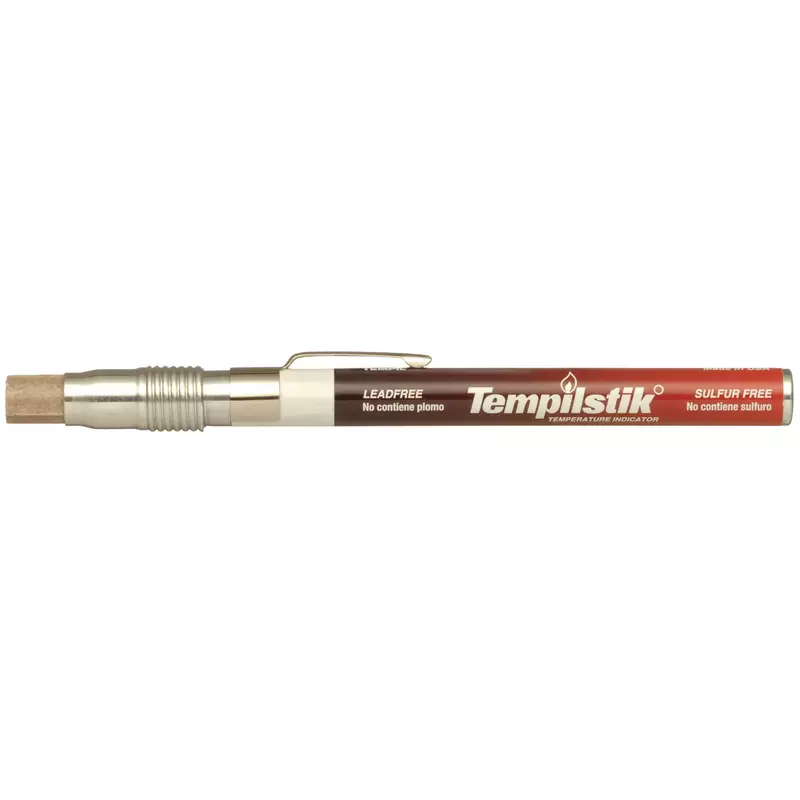

Available in over 100 temperature ratings from 100°F to 2000°F (38°C to 1093°C), each Tempilstik is supplied with a unique slip-resistant metal holder, specifically engineered for smooth operation and maximum user control. Tempilstiks are precise even for the most critical jobs and meet the preheat temperature requirements of AWS D1.1 and other welding code specifications. Unit count: 1. Outer material: Metal. Display type: Analog. Specification met: ANSI, ASME. Product Dimensions (manufacturer): 5.5 x 0.8 x 0.8 inches; weight 0.35 ounces. Special feature: High Accuracy. Included component: Temperature Indicator. Product is traceable and marked by temperature and lot number; NIST traceable. Ideal for surface temperature verification in welding, industrial QA, and field testing.
- Accurate results are +/- 1 percent of rated temperature; reliable Y in calibration
- Easy to Use melts at designated temperature for easy visual inspection
- Superior quality free of contaminants such as Sulfur, Lead and halogens
- Traceable each marked by temperature, lot Number and is NIST traceable
- Complain Meets aws D1.1, ASME Code sec. I, III and viii, ANSI/ASME Code B31.1 and B31.3
Specifications:
| Materials & Construction |
| Color | white |
| Material | Metal |
| Outer Material | Metal |
| Product Details |
| Color | white |
| Display Type | Analog |
| Included Components | Temperature Indicator |
| Item model number | 28006 |
| Model Number | 28006 |
| Product Care Instructions | Wipe Clean |
| Special Feature | High Accuracy |
| Specification Met | ANSI, ASME |
| Unit Count | 1.0 Count |
| Sizing & Dimensions |
| Height | 0.8 inches |
| Length | 5.5 inches |
| Product Dimensions | 5.5 x 0.8 x 0.8 inches |
| Weight | 0.35 ounces |
| Width | 0.8 inches |
| Technical Specifications |
| Product Dimensions (weight) | 0.35 ounces |
| Special Feature | High Accuracy |
| Specification Met | ANSI, ASME |
