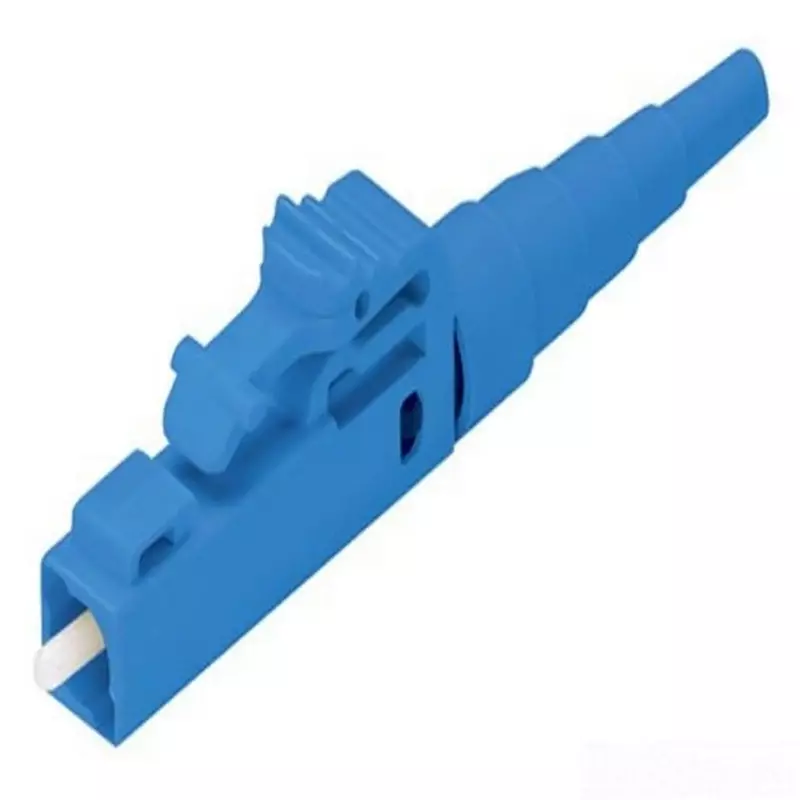

Panduit FLCSSBUY Single-Mode Fiber Optic Connector, Blue
Customize
Field Polish Lc Simplex Connector Os1/os2 Blue. LC single mode simplex fiber optic connector for 1.6mm - 2.0mm jacketed cable or 900m buffered fiber installation. Each simplex connector includes the following: one connector body/ferrule assembly, one crimp sleeve, one dust cap and depending on the part number ordered, one boot for 900μ m buffered fiber and one boot for 1.6mm- 2.0mm jacketed cable or one boot for 3.0mm jacketed cable. TIA/EIA-604 FOCIS-10 compatible connectors. Exceed TIA/EIA-568-B.3 requirements. Insertion loss: 0.10dB average (multimode and single mode). Return loss: >20dB (multimode), >40dB (single mode). Non-optical disconnect maintains data transmission under tensile loads for jacketed cable. Panduit is a world-class manufacturer committed to innovation and excellence. Today, Panduit is recognized as a leading manufacturer of high-quality products for wiring and communications applications. This reputation gives the company a powerful advantage in today's competitive worldwide marketplace.
- TIA/EIA-604 FOCIS-10 compatible connectors
- Non-optical disconnect maintains data transmission under tensile loads for jacketed cable
- Fiber cable type tight-buffered recommended
- For 250μm coated fiber termination, use 250 micron fiber build-up tube kit or fan-out kits
- LC duplex clip available separately for duplexing two simplex Panduit LC connectors
Specifications:
| Materials & Construction | |
| Color | Blue |
| Shape | Round |
| Special Feature | Buffered |
| Product Details | |
| Batteries Included? | No |
| Batteries Required? | No |
| Cable Type | Fiber Optic |
| Color | Blue |
| Connector Gender | Female-to-Female |
| Connector Type | Optical |
| Included Components | Tool |
| Indoor/Outdoor Usage | Indoor, Outdoor |
| Item model number | FLCSSBUY |
| Number of Items | 1 |
| Part Number | FLCSSBUY |
| Shape | Round |
| Special Feature | Buffered |
| Special Features | Buffered |
| Specification Met | EIA, TIA |
| Unit Count | 1.0 Count |
| Warranty Description | Panduit limited 6-month manufacturer's warranty |
| Sizing & Dimensions | |
| Height | 3.5 inches |
| Length | 4 inches |
| Product Dimensions | 4 x 4 x 3.5 inches |
| Weight | 0.16 ounces |
| Width | 4 inches |
| Technical Specifications | |
| Indoor/Outdoor Usage | Indoor, Outdoor |
| Specification Met | EIA, TIA |
| Warranty | Panduit limited 6-month manufacturer's warranty |
